What is a Maglev Train & How it Works

Introduction: The Maglev Train Revolution

Rotem Urban Maglev
Rotem Urban Maglev – source

A New Era in Transportation

What is a Maglev? It’s a question that many minds in the transportation world are excited about the Maglev train revolution. What is a Maglev? It is the abbreviation for “magnetic levitation,” a groundbreaking technology that promises to change how we travel. What is a Maglev train’s potential impact? With its ability to reach higher speeds and reduce travel times, Maglev trains can transform regional economies and redefine commuting. What is a Maglev train’s appeal? Its combination of innovation, efficiency, and sustainability makes it an attractive choice for modern transportation needs.

SCMAGLEV Central Japan Railway Company

What is a Maglev Train: Defining the Innovative Rail System

Unraveling the Science of Magnetic Levitation

So, what is a Maglev train? It is a cutting-edge rail system that uses powerful magnets to levitate and propel the train, eliminating the need for wheels, axles, and bearings. What is a Maglev train’s secret to success? It lies in its ability to minimize friction, allowing faster speeds and improved energy efficiency. What is a Maglev train’s unique characteristic? Its levitation technology enables a smooth and quiet ride while reducing wear and tear on the infrastructure.

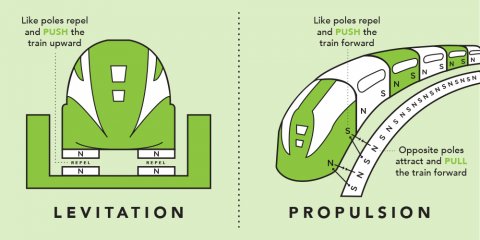

How Maglev Works
How Maglev Works – source
How Maglev Works
How Maglev Works – source

What is a Maglev train’s environmental impact? Due to reduced friction and the absence of direct contact between the train and the tracks, Maglev trains generate less noise and air pollution than traditional trains. What is a Maglev train’s contribution to sustainable transportation? Maglev trains can be powered by renewable energy sources using electricity, reducing their carbon footprint.

Magnetically levitating trains

How Does a Maglev Train Work: Exploring the Mechanisms

Harnessing Magnetic Forces

What is a Maglev train’s working principle? We must examine the Maglevetic forces to understand how Maglev trains work. What is a Maglev train’s primary driving force? The interaction between the train’s magnetic system and the guideway propels the train forward. What is a Maglev train’s levitation mechanism? It relies on the repulsion and attraction of magnets, which create a cushion of air that lifts the train above the tracks.

Levitation Techniques
Levitation Techniques – source
Maglev Trains
Maglev Trains – source

What is a Maglev train’s propulsion system? It uses an electrically charged magnetic field to generate thrust, accelerating the train forward. What is a Maglev train’s secret to achieving high speeds? The absence of friction allows for rapid acceleration and deceleration, enabling Maglev trains to reach and maintain top speeds more efficiently than traditional trains.

Maglev Guideway Systems
Maglev Guideway Systems – source

The Role of Guideway Systems

What is a Maglev train’s guideway system? It is an essential component that ensures the train’s stability and direction. What is a Maglev train without a guideway system? It would be like a ship without a rudder, unable to maintain a steady course. What is a Maglev train’s guideway made of? The guideway consists of magnets and electronic components that work together to levitate and guide the train along its route.

What is a Maglev train’s benefit from a guideway system? The precise control offered by the guideway system allows for more accurate train positioning and smoother rides. What is a Maglev train’s advantage when it comes to track maintenance? The lack of direct contact between the train and the guideway reduces wear and tear, resulting in lower maintenance costs and longer service life for the infrastructure.

World’s fastest train (Maglev Train)

How Much Do Maglev Trains Cost: Examining Financial Factors

Investment and Maintenance Considerations

What is a Maglev train’s cost? While the initial investment in Maglev technology can be significant, the long-term operational and maintenance costs are often lower than in traditional rail systems. What is a Maglev train’s return on investment? It depends on passenger demand, efficiency gains, and regional economic benefits. What is a Maglev train’s cost-effectiveness? In the long run, Maglev trains can be more cost-effective than conventional trains due to lower maintenance expenses and increased energy efficiency.

The Cost of Maglev Transportation Systems

Shanghai Maglev (China)

The Shanghai Maglev, operational since 2004, is the world’s first commercial high-speed Maglev line. It connects Shanghai Pudong International Airport with Longyang Road Station, covering 19 miles. The total cost for the Shanghai Maglev project was approximately $1.2 billion, equating to around $63 million per mile.

Chuo Shinkansen (Japan)

The Chuo Shinkansen, currently under construction in Japan, aims to connect Tokyo and Nagoya using the SCMaglev technology. Spanning a distance of 178 miles, the project’s initial phase is estimated to cost around $52 billion. This puts the cost per mile at approximately $292 million. The project, expected to extend to Osaka, may cost upwards of $80 billion.

Baltimore-Washington Maglev (United States)

The proposed Baltimore-Washington Maglev project in the United States aims to connect Baltimore and Washington D.C., reducing travel time to just 15 minutes. The planned route covers a distance of approximately 40 miles. The estimated cost for this project is around $10 to $12 billion, resulting in a cost per mile of $250 to $300 million.

Mumbai-Ahmedabad High-Speed Rail (India)

Although not a Maglev project, the Mumbai-Ahmedabad High-Speed Rail (MAHSR) in India is noteworthy as it employs a similar high-speed transportation technology called the Shinkansen E5 Series. Spanning 318 miles, the project’s estimated cost is $17 billion, making the cost per mile around $53 million.

What is a Maglev train’s funding source? Typically, Maglev train projects receive funding from public and private sources, including government grants, private investors, and loans. What is a Maglev train’s financial challenge? The high upfront costs can be a barrier to entry for some regions, but the potential long-term benefits may outweigh the initial investment.

Japan’s Maglev Train of Tomorrow

Maglev Train vs. Normal Train: The Great Debate

Comparing and Contrasting Key Features

What is a Maglev train’s main advantage over regular trains? Maglev trains can achieve much higher speeds than conventional trains due to the reduced friction from levitation. What is a Maglev train’s edge in terms of energy efficiency? Maglev trains consume less energy per passenger mile than traditional trains, making them a more environmentally friendly option. What is a Maglev train’s selling point for passenger comfort? Maglev trains’ smooth, virtually silent ride offers passengers a more enjoyable experience.

What is a Maglev train’s limitation compared to regular trains? The need for a dedicated guideway infrastructure can make Maglev systems more expensive and challenging to implement in regions with existing rail networks. What is a Maglev train’s potential drawback in terms of compatibility? Maglev trains cannot operate on conventional rail tracks, limiting their interoperability with existing rail systems.

Maglev Train Operation: Delving into the Practical Aspects

How Maglev Trains Function Daily

What is a Maglev train’s operational process? Maglev trains are designed to be highly automated, with advanced control systems ensuring safe and efficient operation. What is a Maglev train’s approach to safety? Maglev trains incorporate numerous safeguards, such as redundant braking systems and real-time monitoring of train and guideway conditions. What is a Maglev train’s strategy for dealing with potential technical issues? Maglev trains are engineered with multiple backup systems to minimize the risk of service disruptions due to equipment failures.

What is a Maglev train’s capacity? Maglev trains can be designed to accommodate various passenger capacities, depending on the specific needs of the transit system. What is a Maglev train’s flexibility in terms of scheduling? Maglev trains’ automation and control systems allow for more precise scheduling and the ability to adjust to changing demand patterns.

Maglev Train Inventor: The Visionary Behind the Technology

Honoring the Pioneers of Magnetic Levitation

Maglev technology was first conceived and patented by two German inventors, Hermann Kemper and Dr. Walter W. B. B. von Siemens, in the early 20th century. Their patent was granted in 1905 for a magnetic levitation railway system. However, the idea was not fully realized until several decades later.

A linear induction motor being demonstrated by Professor Eric Laithwaite
A joint motor developer, Professor Eric Laithwaite of Manchester University, demonstrates a linear induction motor. The motor has no moving parts, which could mean traveling at 200mph within eight years. (Photo by Ron Case/Getty Images)

The modern concept of Maglev technology is credited to the British inventor and engineer Eric Laithwaite. In the early 1960s, Laithwaite developed the first functional prototype of a Maglev train using linear induction motors. His work laid the foundation for Maglev trains’ future development and commercialization.

Several scientists, engineers, and organizations worldwide have since contributed to the advancement of Maglev technology, resulting in various designs and commercial implementations, such as the Shanghai Maglev in China and the SCMaglev in Japan.

Countries with Maglev Trains: A Global Overview

Adopting the Cutting-Edge Technology Around the World

What is a Maglev train’s global presence? Maglev trains are currently in operation or under development in several countries, including Japan, China, South Korea, and Germany. What is a Maglev train’s success factor in these countries? The combination of strong government support, investment in research and development, and a commitment to sustainable transportation has helped foster the growth of Maglev technology in these regions.

What is a Maglev train’s potential for expansion? As more countries recognize the benefits of Maglev technology, additional projects will likely be initiated worldwide. What is a Maglev train’s role in shaping the future of transportation? Maglev trains offer a promising alternative to traditional rail systems, and their adoption could play a significant part in the global shift toward more sustainable and efficient modes of transportation.

Shanghai Transrapid at Station
Shanghai Transrapid at Station – source

Notable Maglev Systems Worldwide

Shanghai Maglev (China): The Shanghai Maglev, also known as the Shanghai Transrapid, is the world’s first commercially operated high-speed maglev train. Operational since 2004, it connects Shanghai Pudong International Airport to the city’s outskirts, covering a distance of 30.5 kilometers (19 miles). With a top speed of 431 km/h (268 mph), it is currently one of the fastest commercial maglev trains.

Linimo-Urban-Maglev-3-Trains
Linimo Urban Maglev 3 Trains – source

Linimo (Japan): The Linimo, also known as the Aichi High-Speed Transit Tobu Kyuryo Line, is an urban maglev system in Aichi, Japan. Opened in 2005, it is a public transit system connecting several suburbs to the city center. While not as fast as the Shanghai Maglev, it operates at a top speed of 100 km/h (62 mph) and is designed to provide a quiet and smooth ride for passengers.

SCMaglev Central Japan Railway Company.
SCMaglev Central Japan Railway Company. – source

SCMaglev (Japan):

The SCMaglev (Superconducting Maglev) is an advanced high-speed maglev train system developed by the Central Japan Railway Company (JR Central). It utilizes superconducting magnets for levitation and propulsion, which allows it to achieve remarkable speeds and efficiency while maintaining a smooth, quiet ride.

The SCMaglev employs electrodynamic suspension (EDS) technology, where superconducting magnets on the train interact with coils placed along the guideway to produce both lift and propulsion. The train hovers about 10 cm (4 inches) above the guideway, eliminating physical contact and friction between the train and the track, enabling higher speeds and reduced energy consumption.

Checking out Japan’s new maglev train on a test run

The SCMaglev has achieved impressive results during test runs. In April 2015, it set a new world speed record for maglev trains, reaching a top speed of 603 km/h (375 mph) on the Yamanashi test track in Japan. This demonstration showcased the potential of the SCMaglev as a cutting-edge transportation solution.

The Chuo Shinkansen, a planned maglev line between Tokyo and Osaka, is expected to utilize the SCMaglev technology. Once completed, the 286-kilometer (178-mile) journey between the two cities is projected to take just over an hour, significantly reducing travel time compared to conventional high-speed trains. Construction of the Chuo Shinkansen began in 2014, and the initial segment between Tokyo and Nagoya is expected to commence operation in 2027, with the entire line to Osaka slated for completion around 2037.

Incheon Airport Maglev (South Korea)
Incheon Airport Maglev (South Korea)source

Incheon Airport Maglev (South Korea): The Incheon Airport Maglev is a low-speed maglev system that began operations in 2016. It connects Incheon International Airport to the nearby Yeongjong Island, covering 6.1 kilometers (3.8 miles). It is an eco-friendly transportation option for airport passengers and staff with a top speed of 80 km/h (50 mph).

Emsland Test Facility Transrapid Germany
Emsland Test Facility Transrapid Germany – source

Emsland Test Facility (Germany): The Emsland Test Facility is a research and development site for maglev technology located in Lower Saxony, Germany. Since 1984, it has been instrumental in developing the Transrapid Maglev system, which was later implemented in the Shanghai Maglev. The test track at the facility is 31.5 kilometers (19.6 miles) long, allowing for high-speed testing of maglev trains.

Maglev Train Speeds: Unleashing the Power of Magnetics

Analyzing Speed Capabilities and Advancements

Commercially operated Maglev trains, such as the Shanghai Maglev in China, boast top speeds of approximately 267 mph (430 km/h), providing a highly efficient mode of transportation. These impressive speeds contribute to several advantages over conventional trains, including reduced travel times, increased passenger capacity, and a more environmentally friendly option.

Reduced Travel Times

The Shanghai Maglev, which connects Shanghai Pudong International Airport to Longyang Road Station, covers 19 miles (30.5 km) in about 7-8 minutes. At its top speed of 267 mph, travel times are significantly reduced compared to traditional rail or road transportation. This efficiency allows passengers to reach their destinations more quickly and conveniently, making Maglev trains an attractive option for commuters and travelers alike.

Increased Passenger Capacity

Maglev trains’ high speeds enable them to transport more passengers in a given period than conventional trains. With shorter travel times, trains can complete more daily trips, increasing the transportation system’s overall capacity. This increased capacity can help alleviate congestion in densely populated areas and provide passengers with a more comfortable travel experience.

Maglev Train Fastest: The Speediest Trains in Existence

Record-Breaking Maglev Trains Around the World

What is a Maglev train’s claim to fame in terms of speed? Maglev trains are among the fastest land-based transportation systems in the world. What is a Maglev train’s record-breaking achievement? In 2015, a Japanese test train reached a top speed of 603 km/h (375 mph), setting a new world record for Maglev trains.

What is a Maglev train’s potential for breaking more records? As technology advances and new Maglev systems are developed, we will likely see even faster speeds. What is a Maglev train’s implication for the transportation industry? The impressive rates achieved by Maglev trains demonstrate this technology’s potential to revolutionize how we travel and connect.

Incheon Airport Maglev (South Korea) Interior
Incheon Airport Maglev (South Korea) Interior

Maglev Train Inside: A Glimpse at the Passenger Experience

Comfort, Amenities, and Innovation

What is a Maglev train’s interior like? The passenger cabins of Maglev trains are designed to provide a comfortable and enjoyable travel experience, with features such as spacious seating, large windows, and reduced noise levels. What is a Maglev train’s advantage in terms of passenger comfort? The smooth and virtually silent ride offered by Maglev trains creates a more pleasant environment for passengers, especially on longer journeys.

JR Maglev Interior
JR Maglev Interior

What is a Maglev train’s approach to amenities? Maglev trains typically offer a range of amenities, such as onboard dining, Wi-Fi connectivity, and ample storage space for luggage. What is a Maglev train’s commitment to innovation? The advanced technology used in Maglev trains extends to their interiors, with features such as touchscreen displays and intelligent climate control systems enhancing the passenger experience.

Shanghai Transrapid Interior
Shanghai Transrapid Interior

Maglev Japan Train: The Country’s Pioneering Efforts

Japan’s Leading Role in Maglev Train Development

What is the significance of a Maglev train in Japan? Japan has long been a pioneer in developing and implementing Maglev technology, unveiling its first experimental Maglev train in the 1970s. What is a Maglev train’s contribution to Japan’s transportation infrastructure? Japan’s Maglev trains, such as the L0 Series, play a crucial role in the country’s high-speed rail network and are a testament to the nation’s commitment to innovation and sustainability.

What is a Maglev train’s future in Japan? The country is working on the Chuo Shinkansen, a new Maglev train line connecting Tokyo and Nagoya and eventually extending to Osaka. What is a Maglev train’s potential impact on Japanese society? The new line is expected to reduce travel times between major cities significantly, boost regional economies, and promote more excellent connectivity within the country.

Maglev Train America: The Quest for High-Speed Rail in the U.S.

The American Ambition for Maglev Technology

What is a Maglev train’s status in America? While the United States has yet to implement a commercial Maglev train system, there have been several proposed projects and ongoing research efforts. What is a Maglev train’s potential for transforming American transportation? Maglev trains could help address the country’s need for faster, more efficient, and environmentally friendly transportation options, particularly in densely populated regions.

What is a Maglev train’s most notable American project? The proposed Northeast Maglev (TNEM) project aims to connect Washington, D.C., and New York City with a high-speed Maglev train, significantly reducing travel times between the two cities. What is a Maglev train’s potential role in American infrastructure development? If successful, projects like the TNEM could pave the way for more extensive adoption of Maglev technology across the United States.

American Maglev Test Facility Powder Springs, Georgia
American Maglev Test Facility Powder Springs, Georgia – source

American Maglev Test Facility

American Maglev Technology (AMT) represented a pioneering force in the transportation industry with its innovative magnetic levitation and linear induction propulsion technology. In Powder Springs, GA, AMT developed a full-scale test track that spanned approximately 2,000 feet and featured a full-sized passenger vehicle. This facility was a testament to the company’s commitment to advancing non-polluting, electric transit solutions.

The AMT system distinguished itself as the only full-scale magnetic levitation train in the United States. It successfully demonstrated vital operational aspects such as safety, levitation, propulsion, stability, loading, and achieving speeds over 35 mph.

This initiative underscores a significant shift from traditional maglev systems in Germany, China, and Japan, characterized by their complexity and high costs. By innovatively integrating the magnets and controls within a lightweight vehicle and utilizing a simplified track design, AMT significantly reduced the cost of construction and operation.

This approach was geared at positioning AMT as a market-driven solution, aiming to make maglev technology accessible for the mega-regional transportation sector with substantially lower costs compared to conventional and other maglev technologies.

AMT’s original President and CEO, Tony Morris, has been instrumental in promoting this technology. He presented a plan for a 15-mile, $315.2 million magnetic levitation commuter rail system, highlighting its efficiency and cost-effectiveness. This proposal, costing about $20 million per mile, showcases a more affordable alternative to other maglev systems, costing upwards of $70 million per mile.

American Maglev Test Facility Powder Springs, Georgia
American Maglev Test Facility Powder Springs, Georgia – source

The envisioned rail line, inspired by the efficiency of Walt Disney World’s monorail but leveraging AMT’s more economical technology, represents a significant advancement in commuter rail systems.

Furthermore, the Florida Department of Transportation had discussions with AMT regarding a privately funded transit system connecting the airport with critical destinations in Florida, including the Orange County Convention Center and the Walt Disney World Resort.

These initial efforts reflected the increasing interest in integrating AMT’s maglev technology into broader transportation networks, highlighting its potential to revolutionize how we think about transit solutions in the future.

The situation surrounding American Maglev Technology (AMT) and its projects underscores the complex nature of pioneering transportation technologies and bringing them to market. Despite the innovative approach and the development of a full-scale test track in Powder Springs, GA, the proposed projects and the broader adoption of AMT’s magnetic levitation system have not progressed as initially anticipated.

The challenges in advancing such cutting-edge transportation projects can be manifold, ranging from financial hurdles, regulatory approvals, and securing necessary partnerships to broader market acceptance issues. The high initial costs associated with infrastructure projects and the need for extensive testing and certification processes can pose significant barriers.

American Maglev Test Facility Powder Springs, Georgia
American Maglev Test Facility Powder Springs, Georgia – source

The fact that the test track and vehicle are abandoned reflects these challenges. It highlights the gap between technological feasibility and practical implementation on a large scale. Despite this, the concepts and technology developed by AMT remain a significant contribution to the field of magnetic levitation transportation. They represent a vision of what could be possible in redefining urban and regional transit systems to be more efficient, environmentally friendly, and cost-effective.

Exploring the Abandoned Maglev Test Track

The future of AMT’s projects is uncertain; the exploration and development of magnetic levitation technology by AMT and other entities worldwide continue to offer valuable insights and potential pathways for the evolution of transportation. The journey of AMT serves as a reminder of the perseverance required to innovate within complex, infrastructure-heavy industries and the ongoing quest to transform how we move people and goods.

The International Maglev Board

The International Maglev Board is a global organization that promotes the development, implementation, and advancement of Maglev (magnetic levitation) Maglev transportation systems worldwide. This organization brings together researchers, engineers, policymakers, and industry leaders to share knowledge, discuss innovative ideas, and foster international collaboration in maglev technology.

Mission and Goals of the International Maglev Board

The primary mission of the International Maglev Board is to advocate for the widespread adoption of maglev systems as a sustainable, efficient, and environmentally friendly mode of transportation. Key goals include:

  1. It facilitates knowledge exchange and collaboration among maglev experts and enthusiasts.
  2. We are raising awareness of maglev technology’s benefits and potential applications in various transportation sectors.
  3. We provide technical guidance and support for maglev projects in the development or planning stages.
  4. It encourages research and development to advance maglev technology and improve its cost-effectiveness and reliability.
  5. She collaborates with governments, organizations, and industries to establish maglev systems’ safety standards and regulatory frameworks.

Activities and Initiatives

The International Maglev Board organizes various activities and initiatives to support its mission and goals, including:

  1. We are hosting international conferences and workshops that bring together maglev professionals, researchers, and policymakers to discuss advancements, challenges, and opportunities in the field.
  2. They publish research papers, technical reports, and case studies to disseminate knowledge and promote innovation in maglev technology.
  3. Maintaining an online platform and resource center to provide information on maglev projects, technologies, and best practices.
  4. Supporting educational and training programs to develop a skilled workforce in the maglev sector.
  5. Collaborating with public and private stakeholders to facilitate funding and investment in maglev projects.

Impact and Future Prospects

The International Maglev Board is crucial in promoting maglev technology as a sustainable and efficient transportation solution. By fostering international cooperation, sharing expertise, and supporting research and development, the organization helps pave the way for the continued growth and success of maglev systems worldwide. As global concerns about climate change, urbanization, and transportation efficiency increase, the International Maglev Board’s efforts in advancing maglev technology will likely become even more critical and impactful.

Maglev Train Pros and Cons: Weighing the Benefits and Challenges

Understanding the Advantages and Disadvantages of Maglev Trains

What is a Maglev train’s most significant advantage? Among their most notable benefits are Maglev trains’ high speeds, reduced travel times, and energy efficiency. What is a Maglev train’s contribution to sustainability? Maglev trains produce fewer emissions and consume less energy than traditional trains, making them a more environmentally friendly transportation option.

What is a Maglev train’s primary drawback? The high initial costs and the need for dedicated infrastructure can be significant barriers to implementing Maglev systems. What is a Maglev train’s challenge in terms of compatibility? Maglev trains cannot operate on conventional rail tracks, which can limit their interoperability with existing rail networks.

What is a Maglev train’s overall assessment? While Maglev trains offer numerous advantages and the potential to revolutionize transportation, the challenges and costs associated with their implementation must be carefully considered. Adopting Maglev technology will ultimately depend on various factors, including financial resources, regional needs, and long-term transportation goals.
