Cog Railroads or Rack Railways

So, What are Cog Railroads or Rack Railways?

Cog railroads, also known as rack railways, are a unique type of railway system designed to overcome the limitations of conventional trains when traversing steep gradients.

Using a toothed rack rail and cogwheel system, these railways can ascend and descend steep slopes, navigating mountainous terrains that would be otherwise impossible for standard trains.

This innovative engineering solution has enabled connecting remote locations, enhancing tourism, and transporting people and goods across challenging landscapes.

A Brief History: The Origins and Evolution of Cog Railroads and Rack Railways

The concept of cog railways dates back to the early 19th century. The first rack railway was built in 1812 by English engineer John Blenkinsop, who designed a cogwheel system to engage with a toothed rack rail.

However, it wasn’t until the 1860s that the first mountain cog railways were constructed, notably the Mount Washington Cog Railway in the United States and the Rigi Railway in Switzerland.

Since then, the technology has evolved and spread worldwide, with numerous countries constructing their cog railways to facilitate transportation and tourism in mountainous regions.

Today, these railways are a testament to human innovation and the enduring fascination with conquering nature’s challenges.

Engineering Marvels: How Cog and Rack Systems Defy Gravity to Conquer Mountains

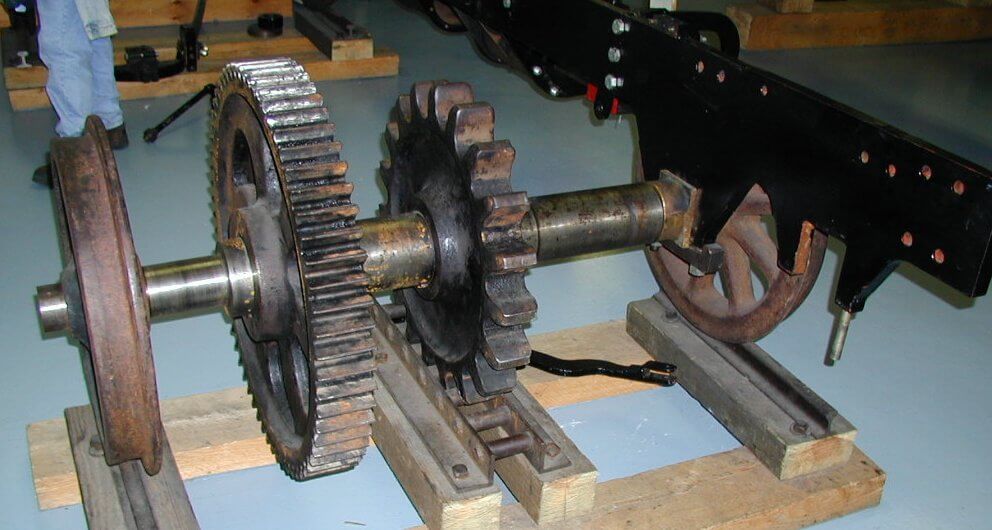

The secret behind the ability of cog railroads to tackle steep slopes lies in their unique rack and pinion system. A toothed cogwheel on the locomotive engages with a toothed rack rail laid between or alongside the conventional rails.

This interlocking system provides the necessary traction and stability for the train to climb or descend gradients unattainable by regular trains, which rely solely on the friction between wheels and tracks.

In addition to the cogwheel system, cog railways often use specially designed locomotives and carriages to ensure passenger safety and comfort and counteract the forces experienced on steep inclines.

Notable Cog Railroads: A World Tour of the Most Iconic and Scenic Rack Railways

USA Cog Railroads – Mount Washington Cog Railway (New Hampshire)

The Mount Washington Cog Railway, located in New Hampshire, USA, is a historic and iconic cog railway that climbs to the summit of Mount Washington.

Opened in 1869, it is the oldest mountain cog railway in the United States and one of the earliest in the world. The railway was the brainchild of Sylvester Marsh, who sought to make the breathtaking views of the White Mountains accessible to the public.

The railway spans approximately 3 miles (4.8 kilometers), with an average grade of 25% and a maximum grade of 37.41%. It takes about an hour to reach the 6,288-foot (1,917-meter) summit of Mount Washington, the highest peak in the northeastern United States.

The train ride offers passengers unparalleled views of the surrounding landscape, including the valleys, forests, and the Presidential Range of the White Mountains.

The Mount Washington Cog Railway operates steam and biodiesel-powered locomotives introduced in the 2000s for their environmental benefits and efficiency. The railway typically runs from late April to early November, with additional winter trips to Waumbek Station at a lower elevation.

USA Cog Railroads – Pikes Peak Cog Railway (Colorado)

The Pikes Peak Cog Railway, situated in Manitou Springs, Colorado, is a famous and historic cog railway that takes passengers on a thrilling journey to the summit of Pikes Peak. With an elevation of 14,115 feet (4,302 meters), Pikes Peak is one of the most well-known “fourteeners” in the United States and offers breathtaking views of the surrounding landscape.

The railway opened in 1891 and spanned 8.9 miles (14.3 kilometers). It ascends through diverse ecosystems, including dense forests, high-altitude meadows, and the treeless alpine tundra. The average grade of the railway is approximately 12%, with the steepest section reaching a 25% gradient.

In 2018, the Pikes Peak Cog Railway was closed for extensive renovations, which included track replacement, station improvements, and the introduction of new Swiss-built railcars. The railway reopened in May 2021, offering passengers an enhanced experience with modern amenities and increased safety.

The journey to the summit of Pikes Peak on the cog railway takes around 1 hour and 10 minutes, with a 40-minute stop at the summit for passengers to take in the views, explore the newly built Summit Visitor Center, and enjoy the famous Pikes Peak donuts. On a clear day, it is possible to see as far as the borders of Colorado, Kansas, and New Mexico from the summit.

Rest of the World Rack Railways

Jungfrau Railway (Switzerland)

This breathtaking railway transports passengers to the highest railway station in Europe, situated at the foot of the famous Jungfrau mountain. This website provides an excellent overview of the experience.

Snowdon Mountain Railway (Wales)

The only rack railway in the United Kingdom takes passengers to the summit of Snowdon, the highest peak in Wales.

The Pilatus Railway (Switzerland)

With gradients as steep as 48%, this Swiss cog railway is recognized as the world’s steepest rack railway.

Conclusion

Cog railroads and rack railways represent an incredible feat of engineering that has enabled humans to overcome the challenges of mountainous terrain. These railways serve as essential transportation links and as breathtaking attractions, offering tourists and enthusiasts the chance to witness stunning landscapes and appreciate the ingenuity of the technology behind them.

As we marvel at these engineering masterpieces, we are reminded of the power of human innovation and our enduring fascination with conquering nature’s obstacles.
