Incline Railroad or Funicular Railroad

Exploring Incline Railroads and Funicular Railroads: Their History, Functionality, and Modern-Day Applications.

An Incline Railroad, also known as a Funicular Railroad, is a type of railway system that uses a cable to haul tram-like cars up and down a steep slope. One car goes up while the other goes down, and they are attached by a cable that passes over a pulley at the top of the slope. The slope is often very steep, making it difficult or impossible for conventional trains to climb or descend safely.

Incline Railroads are often used in areas with steep terrains, such as mountainous regions or urban areas with steep hills. They are also used in mines, quarries, and other industrial applications where steep slopes must be traversed.

How Does an Incline Railroad or Funicular Railroad Work?

The Incline Railroad or Funicular Railroad cars are connected to the cable by a grip mechanism that ensures they remain securely attached throughout the journey.

One car goes up while the other goes down, and they counterbalance each other’s weight. A large motor drives the cable at the slope’s top or bottom.

The cars are designed with a slanted floor that keeps passengers level as they travel up or down the slope. The cars also have brakes that can be used to stop them in an emergency. Incline Railroads are often automated, but some are operated manually by an operator in one of the cars.

Track Design

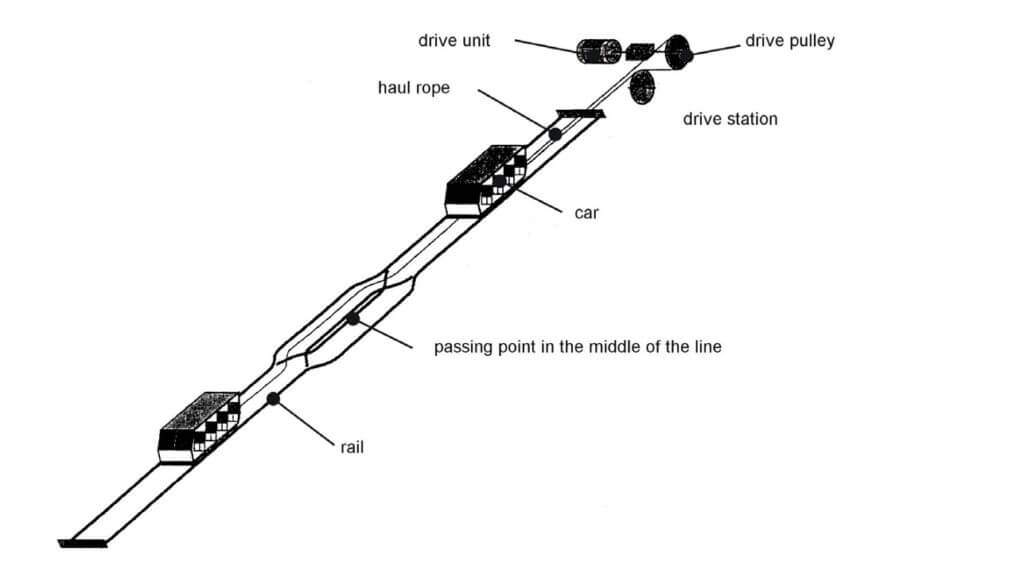

Funiculars can use one of three main rail layouts, each with advantages and disadvantages. Depending on the system, the track bed may consist of four, three, or two rails (see diagram above).

4. The four-rail layout was used in early funiculars, with two parallel tracks and station platforms at both ends for each vehicle. This layout allows for both tracks to be straight without the need for sheaves on the tracks to keep the cable in place. However, it requires the most land area. Examples of funiculars that use this layout include the Duquesne Incline in Pittsburgh, Pennsylvania, and most cliff railways in the United Kingdom.

3. Three-rail layouts share a middle rail between both carriages, while each car runs on a different outer rail. The middle rail briefly splits into two at a passing loop to allow the two cars to pass each other at the halfway point. This layout requires less rail to construct than four-rail systems but requires separate station platforms for each vehicle.

2. Both cars share the entire track except at the passing loop in the middle of the two-rail layout. This is the narrowest of all forms and requires only one platform at each station, although sometimes two platforms are built for boarding and alighting. However, the passing loop is more complex and costly to build, and special turnout systems must be in place to ensure that each car always enters the correct track at the loop. Also, if a rack for braking is used, it can be mounted higher in three-rail and four-rail layouts, making them less susceptible to choking in snowy conditions compared to the two-rail design.

The rails are typically laid on a steeper gradient than a conventional railway track, with 25% to 70% inclines. The steep rise is necessary to allow the Funicular to travel up and down the slope safely and efficiently.

Overall, the funicular railroad track layout is designed to accommodate the steep slope inclines while providing a safe and efficient means of transportation. The passing loop, gradient, rails, cross ties, sleepers, and grip mechanism are all essential features of the track layout that ensure the safe and efficient operation of the system.

Famous Funicular Rail Systems

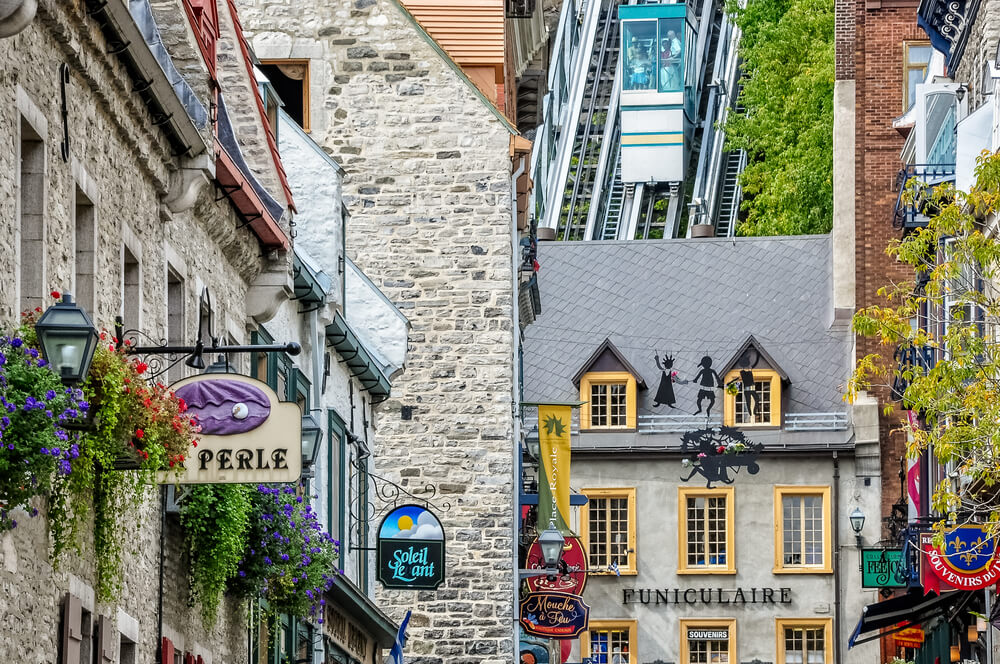

Funicular Railroad Quebec City, Quebec, Canada

The Funicular in Quebec City is a historic cable railway built in 1879 to transport people and goods up the steep bluffs overlooking the St. Lawrence River. The railway has undergone several renovations and upgrades over the years, and today, it is a popular tourist attraction that offers stunning views of the city and the river. More information may be found on the Funicular, from the website Le Funiculaire.

Funicular Railroad Cairngorm Scotland

The Funicular Railway in Cairngorm, Scotland, is a cable railway built in 2001 to provide access to the Cairngorm Mountain ski resort. A cable system powers the Funicular and has two cars, each with a capacity of 120 passengers. The ride takes approximately 10 minutes and offers stunning views of the surrounding landscape. Operating information is provided on www.cairngormmountain.co.uk.

Funicular Railroad Dubuque, Iowa, USA,

The Funicular in Dubuque, Iowa, is a historic railway built in 1882 to transport people and goods up the steep bluffs overlooking the Mississippi River. The railway was restored and reopened in 1998 as a tourist attraction, and it remains an integral part of Dubuque’s cultural heritage. A nonprofit organization operates the Funicular and offers stunning views of the river and the city. Additional information is available from Fenlon Place Elevator Company.

Funiculars Railroad Lisbon Portugal

There are three funiculars in Lisbon, the capital of Portugal.

Elevador do Lavra

The Elevador do Lavra is the oldest funicular railway in Lisbon, Portugal. It was inaugurated in 1884 and connects the neighborhoods of Largo da Anunciada and Rua das Portas de Santo Antão. A water counterweight system powers the Funicular and has two cars, each with a capacity of 20 passengers. The ride takes approximately one minute and offers stunning views of the city. The Elevador do Lavra is integral to Lisbon’s cultural heritage and a popular tourist attraction, symbolizing the city’s growth and development over the past century.

Elevador da Glória

The Elevador da Glória is a funicular railway located in the heart of Lisbon, Portugal. It was inaugurated in 1885 and connects the neighborhoods of Restauradores and Bairro Alto. A cable system powers the Funicular and has two cars, each with a capacity of 29 passengers. The cars are decorated with traditional Portuguese tiles and offer stunning city views during the ascent and descent. The Elevador da Glória has become an important part of Lisbon’s cultural heritage and a popular tourist attraction, attracting visitors from around the world.

Bica Funicular

The Bica Funicular is a funicular railway located in the Bica neighborhood of Lisbon, Portugal. It was inaugurated in 1892 and connected the Rua de São Paulo with the Calçada do Combro. A cable system powers the Funicular and has two cars, each with a capacity of 25 passengers. The ride takes approximately three minutes and offers stunning views of the city. The Bica Funicular is an important part of Lisbon’s cultural heritage and a popular tourist attraction, symbolizing the city’s unique character and history.

The funiculars Elevador do Lavra, Elevador da Glória, and Elevador da Bica are all operated by Carris. An excellent information blog page on Lisbon’s trams, funiculars, lifts, where they go, and which one to ride is Lisbon Guru.

Dreaming of a Funicular Filled Portuguese Getaway?

Start your adventure with a stroll through Lisbon, where the iconic trams, streetcars, and funiculars offer a charming way to explore the city’s historic neighborhoods. Pair this with a visit to Portugal’s top attractions and a thoughtfully designed 5-day itinerary of Portugal courtesy of Trips & Tours for a trip filled with culture, beauty, and memorable experiences.

Peak Tram Funicular Hong Kong China

The Peak Tram is a historic funicular railway in Hong Kong built in 1888. The railway carries passengers to the top of Victoria Peak, which offers stunning city skyline views. The Funicular has undergone renovations and upgrades and remains one of Hong Kong’s most popular tourist attractions. The Peak Tram is integral to the city’s cultural heritage and symbolizes its growth and development over the past century—comprehensive details at Peak Tramways Company, Limited.

Famous Incline Rail Systems

Railroad Incline Chattanooga, Tennessee, USA

The Incline Railway in Chattanooga, Tennessee, is a popular tourist attraction that takes passengers up and down a steep incline to the top of Lookout Mountain. The website Ride the Incline has operating and ticket information. The railway was built in 1895 and is one of the steepest passenger railways in the world. It offers stunning views of the surrounding area, including the famous Ruby Falls, the Tennessee River, and downtown Chattanooga.

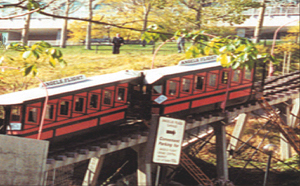

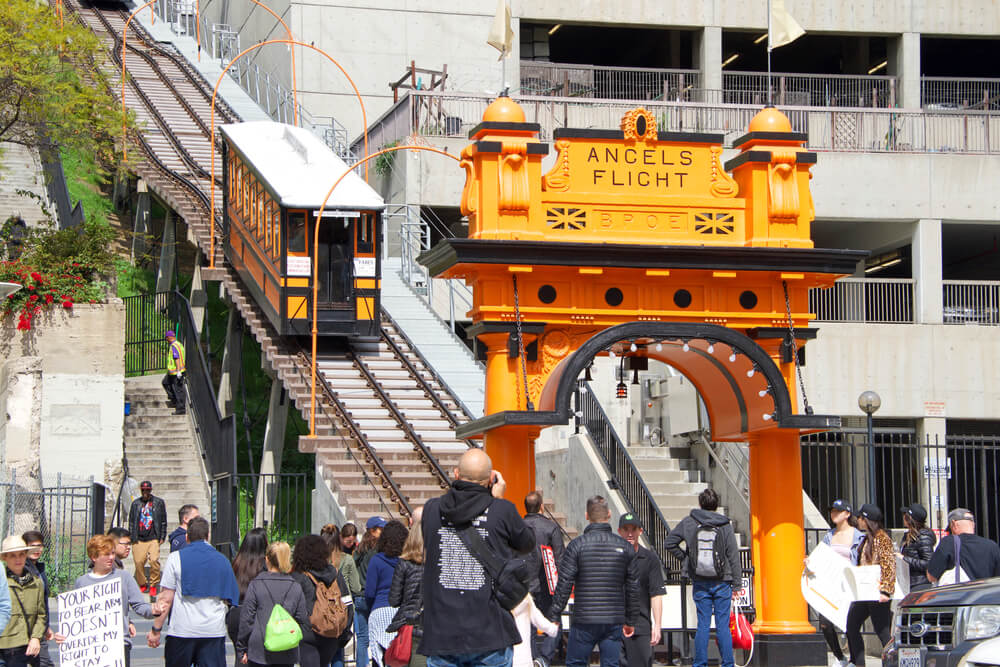

Railroad Incline Angel Flight California USA

The Incline Railway Angel Flight is a historic funicular railway in Los Angeles, California. It was inaugurated in 1901 and is the shortest railway in the world, with a total length of 298 feet. The Funicular connects the Hill Street Station and the top of Bunker Hill and is operated by the city’s public transportation system. The Incline Railway Angel Flight is essential to Los Angeles’ cultural heritage and a popular tourist attraction, offering stunning city views.

The Angel’s Flight railway experienced a tragic accident on February 1, 2001, that left one person dead and several injured.

The National Transportation Safety Board (NTSB) investigation revealed that the new funicular system used two separate haulage systems for each car, but these were connected through a gear train to the drive motor and the service brake.

The accident occurred due to the failure of this gear train, which effectively disconnected one car from the service brake and its counterbalancing car, leaving it without any brakes.

The emergency brakes, which could have prevented the accident, were found to be inoperative due to inadequate maintenance. This lack of functioning emergency brakes was attributed to a normally closed hydraulic solenoid valve being placed incorrectly per the design. It required a normally open valve, and its solenoid had burned out.​

The NTSB report highlighted several major safety issues, including inadequate safety oversight of the reconstruction project, poor design of the reconstructed system, and the inappropriateness of the braking systems designed for Angel’s Flight.

After the accident, significant efforts were made to repair, restore, and ensure the safety of the railway, leading to its reopening in 2010. This process involved meticulous design and construction efforts, including the installation of a new drive assembly and control system to ensure the safe operation of the Funicular

The tragedy served as a stark reminder of the importance of rigorous maintenance and adherence to safety standards in public transportation systems. It prompted city officials and railway operators to implement stringent safety measures and regular maintenance checks to prevent a recurrence of such an event.

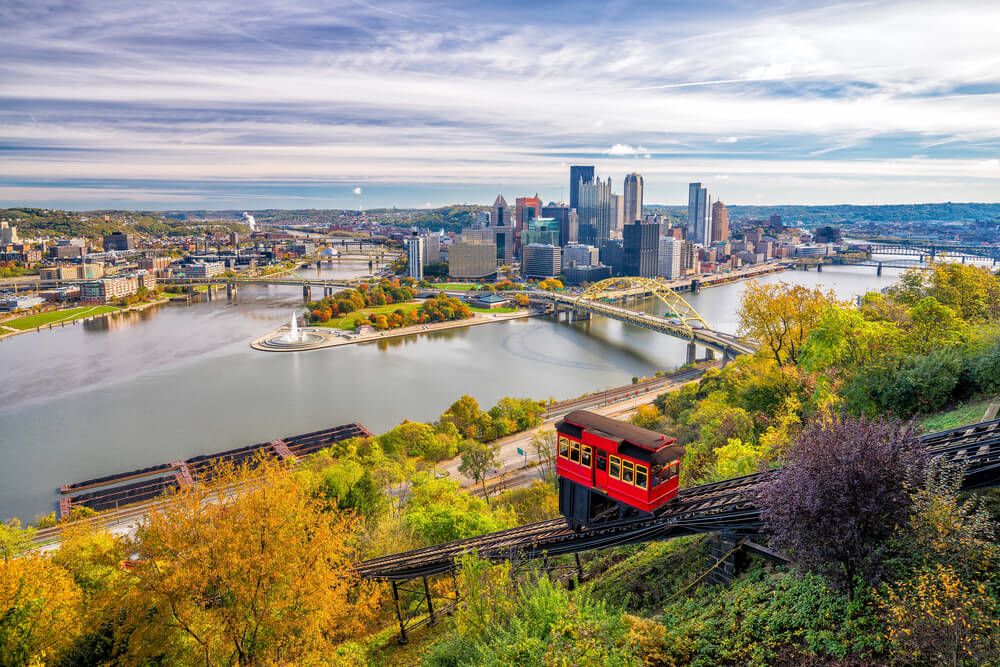

Incline Duquesne Pittsburgh, Pennslyvania

The Duquesne Incline Pittsburgh is a historic funicular railway in Pittsburgh, Pennsylvania. It was inaugurated in 1877 and connects the city’s South Shore with the top of Mount Washington. A cable system powers the Funicular and has two cars, each with a capacity of 23 passengers. The ride takes approximately five minutes and offers stunning city skyline views. The Duquesne Incline Pittsburgh is important to the city’s cultural heritage. It is a popular tourist attraction, symbolizing Pittsburgh’s industrial past, growth, and development.

Conclusion

Incline Railroads and Funicular Railroads are fascinating examples of engineering that allow people to travel up and down steep slopes safely and efficiently. They are often used in areas with steep terrain or industrial applications but are also popular tourist attractions worldwide. Wikipedia maintains a complete list of operating Incline Railroads and Funicular Railroads.

A comprehensive presentation and technical description of this form of transportation may be found in Cable-drawn Urban Transport Systems.
