Monorail Disney World Crash: A Tragic Incident

Introduction: Setting the Scene of the Monorail Disney World Crash

On July 5, 2009, a tragic accident occurred at the Walt Disney World Resort in Florida, resulting in the death of a Monorail operator. This devastating incident shocked the entire Disney community. It led to a renewed focus on Monorail safety and the implementation of significant changes in the operation of the popular transportation system.

In this article, we will explore the events leading up to the Monorail Disney World crash, the investigation that followed, and the measures that have been put in place to prevent such accidents from happening in the future.

Timeline of Events: The Moments Leading Up to the Tragic Accident

On that fateful early morning, two Monorail trains were operating on the same track near the Transportation and Ticket Center. At approximately 2:00 a.m., one train, known as the Pink Monorail, was instructed to reverse onto a spur track to make way for the other, the Purple Monorail, to continue its journey to the Magic Kingdom station.

However, due to a miscommunication between the Monorail operator and the central control, the Pink Monorail reversed onto the same track as the approaching Purple Monorail. The two trains collided, leading to the death of the 21-year-old operator of the Purple Monorail, Austin Wuennenberg.

Investigation and Findings: Uncovering the Causes of the Crash

In the aftermath of the Monorail Disney World crash, a thorough investigation was launched to determine the causes of the accident. The National Transportation Safety Board (NTSB) and the Occupational Safety and Health Administration (OSHA) were involved in the investigation.

The findings revealed that the collision occurred due to human error, miscommunication between the operator and central control, and the absence of a secondary safety system to prevent such incidents.

Monorail System Terminology: Switch Beam and Beam

In the context of the Walt Disney World Resort monorail system, the terms “switch beam” and “beam” are used to describe the specific components and functions of the track system.

Beam

A “beam” refers to the elevated guideway or track on which the monorail trains travel. Monorails are unique as they run on a single concrete beam, unlike traditional trains on two parallel tracks. The Walt Disney World Resort monorail system has multiple beams, such as the Resort/Lagoon beam, the Express beam, and the Epcot beam, each serving different areas within the resort.

Switch Beam

A “switch beam” is a specific section of the monorail track system that allows trains to change from one beam to another. Switch beams are essential for efficient routing and maneuvering of monorail trains throughout the resort, including transitioning trains between guest transportation and maintenance areas.

Switching beams involves realigning these specific track sections to connect one beam to another, allowing the monorail to move onto the desired route safely. Monorail operators and central coordinators closely communicate and monitor the position of switch beams using video cameras and the Power Distribution and Monitoring System (PDMS) to ensure proper alignment before authorizing any movement across them.

In summary, “beam” refers to the individual guideways or tracks of the monorail system. In contrast, “switch beam” refers to the specialized track sections that enable monorail trains to change between these beams. Understanding this terminology and the processes involved is crucial for grasping the complexities of monorail operations and safety measures, as discussed in the context of the 2009 accident at Walt Disney World Resort.

National Transportation Safety Board (NTSB) Report

The NTSB report is lengthy; the following is our abbreviated review of that report.

Collision Summary

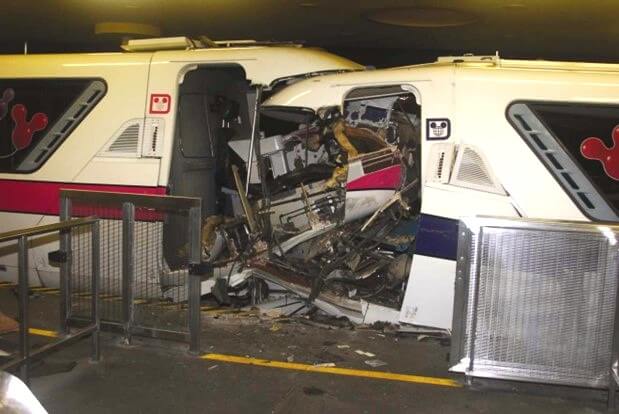

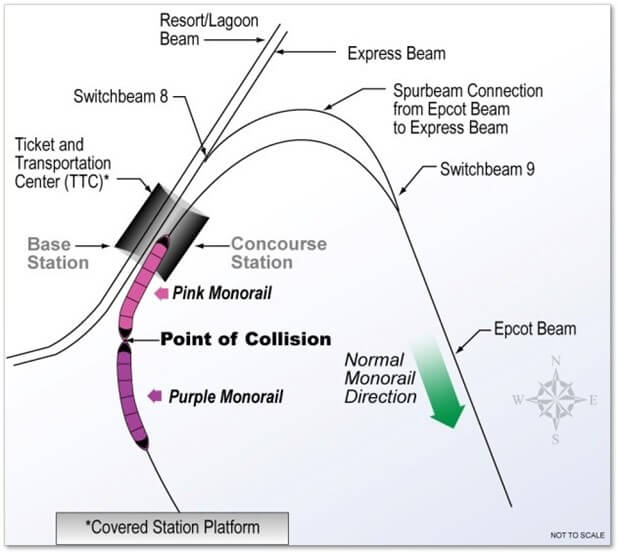

On July 5, 2009, at 2:00 a.m., two monorails collided on the Epcot beam within Walt Disney World Resort in Florida. The Pink monorail backed through an improperly aligned switch-beam and struck the Purple monorail. The Purple monorail’s operator was fatally injured, while the six passengers were unharmed. The operator of the Pink monorail was treated and released from a nearby hospital. The accident resulted in an estimated $24 million in damages.

Monorail System Overview

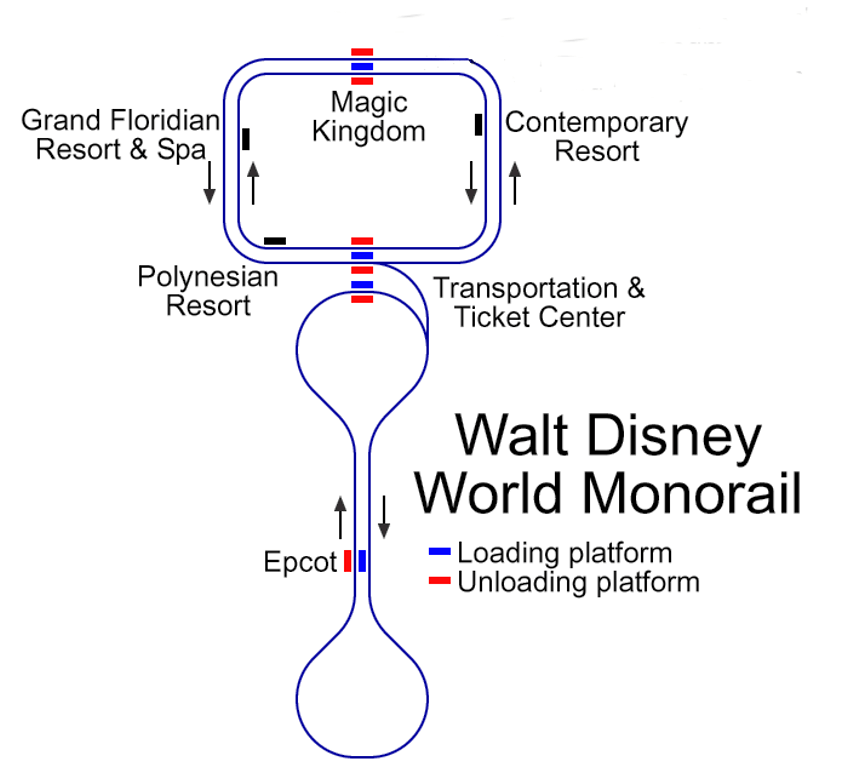

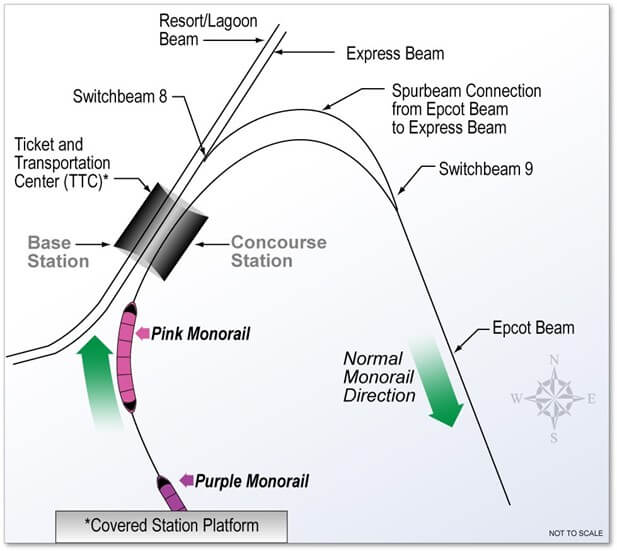

The Walt Disney World Resort monorail system has two service areas: Magic Kingdom Park and Epcot. The Magic Kingdom Park area has two parallel beams, the Resort/Lagoon beam and the Express beam, while the Epcot area has a single loop, the Epcot beam.

The Epcot beam connects to the Magic Kingdom Express beam through a spur beam. When the park closes, monorails continue to operate for guest transportation, with the Express beam operating for an hour and the Resort beam for two hours after closing. Designated monorails are then returned for nightly maintenance.

Accident Sequence

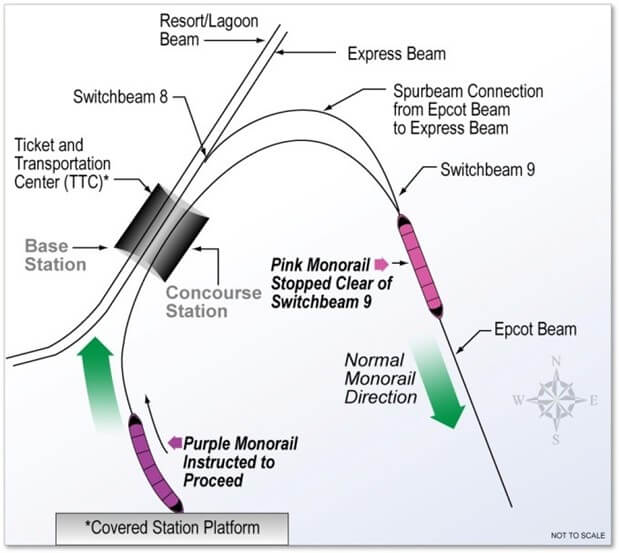

The Pink, Purple, and Coral monorails operated on the Epcot beam during the accident sequence. The Pink monorail, without passengers, was scheduled to divert onto the Express beam for maintenance. The central coordinator instructed the Pink monorail operator to move past switch beam nine on the Epcot beam.

The central coordinator then contacted the shop panel operator to align switch beams 8 and 9 for the spur beam. However, the shop panel operator did not immediately initiate the switch-beam realignment. At 1:55 a.m., the Silver monorail operator advised the shop panel operator of a door alert, further complicating the situation.

Other Contributing Factors

Disney’s Operating Guide provided non-mandatory radio communication guidelines for monorail movements. The scripted radio procedure for moving a monorail from the Epcot beam through switch beams 9 and 8 to the Express beam required the monorail operator to stop at the Concourse station and switch operating cabs before passing switch beam 9.

This would place the operator in the forward-facing cab as the monorail backed across the repositioned switch beams onto the Express beam. However, the Pink monorail operator was instructed to switch ends only after reaching the Grand Floridian Resort and Spa station. The operator stated that the central coordinator’s instructions determined the location and timing of switching ends.

Post-Accident Investigation

During the NTSB post-accident investigation, a reenactment of monorail movements was performed. The investigator observed a downhill grade into the station, where the monorail speed accelerated, and the operator focused on controlling the speed.

The Pink monorail operator confirmed it was important not to exceed 15 mph in MAPO override. The investigator also noted similarities between the Concourse and Base stations’ lighting environments, physical configurations, and the control actions required to enter each station.

Accident Causal Conclusion

The National Transportation Safety Board determined the cause of the 2009 collision was the shop panel operator’s failure to position switch-beam nine properly and the monorail manager’s inability to verify its position before authorizing the Pink monorail’s reverse movement. Contributing factors included Walt Disney World Resort’s lack of standard operating procedures, resulting in unsafe reversing practices on the monorail system.

Safety Measures Implemented

Walt Disney World Resort took actions after the accident, including requiring monorail drivers to be in the forward-facing cab when switching beams, assigning dedicated spotters/observers to monitor reverse movements, requiring drivers to confirm switch-beam positions visually, and allowing monorail central coordinators to direct monorail operation in MAPO override only during switching operations, while other movements require manager approval.

Additional Safety Measures

The monorail central coordinator must remain inside the control tower and visually verify the beams’ position and power status. Shop panel operators confirm switch beam positions via video monitors, with a second operator verifying the process. Employees received additional training on addressing condensation on monorail windshields.

The on-duty monorail manager must remain on the premises, and the E-Stop button is active when the console is inactive. Climate control adjustments reduce windshield condensation. A monorail tracking board aids shop panel operators during switching procedures.

Enhanced Monitoring and Verification

Direct video camera feeds monitor switch-beams, and verification procedures for switch-beam positions are being standardized. A new radio signal directs all monorails to stop immediately. PDMS software was upgraded to capture more data related to switch-beam operation, and a monorail brake system reconfiguration is being validated.

Lessons Learned

The 2009 monorail collision highlighted the importance of implementing standard operating procedures and ensuring effective communication between monorail operators and central coordinators.

Following the accident, Walt Disney World Resort took several actions to improve safety measures and monitor monorail operations more closely. These improvements aim to prevent similar accidents in the future, ensuring the safety of both employees and guests.

Occupational Safety and Health Administration (OSHA)

The OSHA report included the incident with other concurrent Safety and Health breaches and released their report as a media release. The following is our abbreviated review of that report.

OSHA Cites Walt Disney World Following Monorail Collision and Actor’s Death

OSHA cited Walt Disney World for safety violations after a monorail driver’s fatality in July and issued a recommendation letter concerning an actor’s death during a stage production in August.

Monorail Collision Incident

A worker was killed when two monorail trains collided while switching tracks due to switch beams not being locked or energized.

Walt Disney World is cited for a severe violation for exposing employees to struck-by collision hazards.

Additional Violations Found During Investigation

Inspectors observed three violations unrelated to the fatality, including two repeat violations for fall hazards and lack of educational training and a serious violation for an unguarded drill press.

Actor’s Death and Recommendation

An actor was fatally injured during the Pirates of the Caribbean tutorial stage show when he hit a concrete wall on a new stage.

No OSHA violations were proposed for the incident, but the agency recommends employees rehearse on new stages before live performances.

OSHA Assistant Secretary’s Statement

Dr. David Michaels emphasized the need for effective and ongoing corrective action to protect workers’ health and safety, suggesting that greater familiarity with the new stage might have changed the actor’s death outcome.

Proposed Penalties and Company Response

OSHA proposed $44,000 in penalties for the monorail incident, including a $7,000 penalty for the serious violation related to the fatality.

Disney has 15 business days to comply, request an informal meeting, or contest the citations and proposed penalties.

OSHA’s Role and Contact Information

OSHA promotes safe and healthful working conditions by setting and enforcing standards and providing training, outreach, and education.

For more information, visit http://www.osha.gov or contact OSHA’s Tampa Area Office at 813-626-1177.

Safety Measures Implemented: Disney’s Response to the Incident

Following the Monorail Disney World crash, the Walt Disney World Resort took immediate steps to improve the safety and operation of its Monorail system.

These safety measures, along with ongoing training and evaluation, have significantly improved the safety of the Disney Monorail system, ensuring that guests and cast members can continue to enjoy the service with confidence.

Honoring the Memory of the Monorail Operator: A Tribute to a Disney Cast Member

In the wake of the Monorail Disney World crash, the Disney community came together to honor the memory of Austin Wuennenberg, the young Monorail operator who tragically lost his life in the accident.

A memorial service was held at the Magic Kingdom, attended by fellow cast members, friends, and family. Austin’s scholarship fund was also established to support students pursuing engineering or transportation safety careers.

Lessons Learned: The Impact of the Crash on Monorail Safety

The Monorail Disney World crash served as a sobering reminder of the importance of safety in all transportation systems. The incident sparked a renewed focus on safety at Disney World and Monorail systems worldwide.

It demonstrated the need for comprehensive safety protocols, ongoing training, and continuous evaluation to maintain the highest safety standards.

Moving Forward: The Future of Monorail Safety at Disney World and Beyond

Since the Monorail Disney World crash, there has been a heightened focus on safety within the Monorail industry. Disney World has continued to invest in the safety and reliability of its Monorail system, regularly updating and maintaining its fleet of trains and tracks. In addition, other Monorail systems worldwide have also taken steps to enhance safety measures and learn from the lessons of the Disney World incident.

The Monorail industry has also seen technological advancements that can improve safety, such as more sophisticated automated control systems, communication technologies, and better track-switching mechanisms. These advancements, combined with a commitment to safety from operators and regulators, can help ensure that Monorail systems remain a safe and reliable mode of transportation for millions of passengers worldwide.

Conclusion: Reflecting on the Monorail Disney World Crash and Its Legacy

The Monorail Disney World crash was a tragic event that shook the Disney community and the broader transportation industry. However, the lessons learned from this incident have significantly improved Monorail safety and operations at Disney World and globally.

By remembering the events of that fateful day and honoring the memory of the young Monorail operator, Austin Wuennenberg, we can continue to strive for the highest standards of safety and ensure that Monorail systems remain a trusted and beloved mode of transportation for generations to come.
